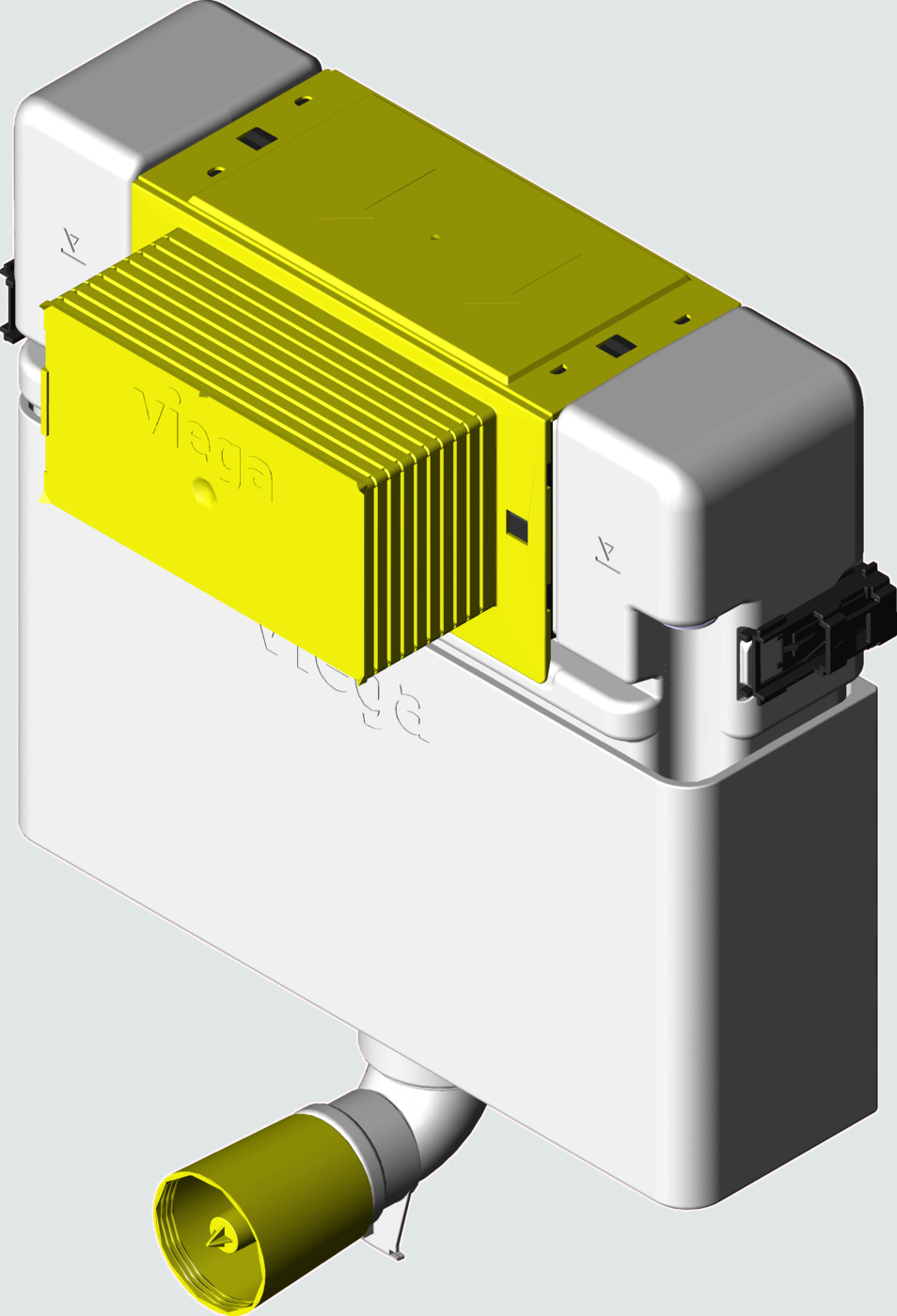

Prevista Concealed cistern 3L
Prevista Concealed cistern 3L
- for floor-standing WC, immurement and encircling wall
- plastic
- compatible with all WC flush plates for Prevista, flush actuation from front or top, dual flush technology
Components
filling valve type AG (tested to BS 1212-4:2016 in accordance with WRAS approval number 2103303), WC connection fitting, fixing material, water connection R½Technical data
Partial flush volume factory setting approx. 3 lPartial flush volume setting range approx. 2–4 l
Full flush volume factory setting approx. 6 l
Large flush volume setting range approx. 3.5–7.5 l
Note
Flush plates and accessories: WC and urinal flush plates for Prevista product group.Model 8504.38
Articles table
B | PU | Article | amount |
---|---|---|---|
B | PU | Article | amount |
416 | 1/20 | 804 664 |
|
B = width
